please select HUIYUE transformer bushing auto through machine manufacturer.

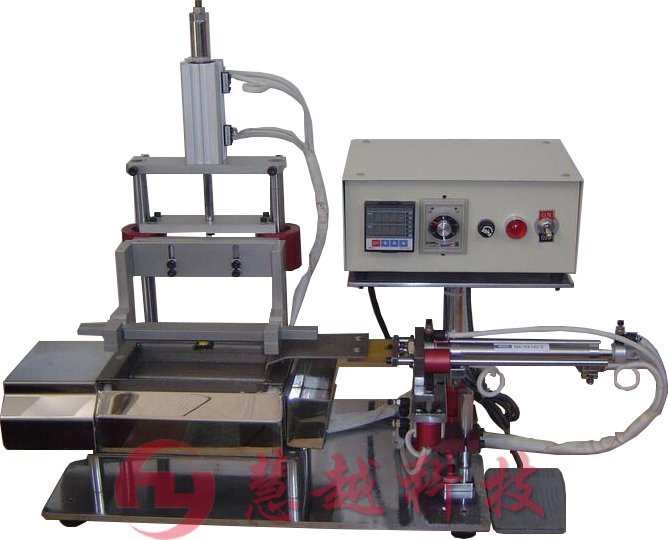

HY - H11 semi-automatic tin soldering machine (budget) - parameters

Wave number: no drive form: pneumatic

Voltage current: AC 220 v products alias: semi automatic soldering machine

Tin stove temperature: 0-600 ℃) temperature control mode: the thermostat

Start the power: normal operation of the power (KW) : 2 (KW)

Dynamic forms: cylinder use: solder products

HY - H11 semi-automatic tin soldering machine (budget) - performance

Performance: (1) does the power supply voltage: AC 220 v / 50 hz / 12 a; Does tin stove temperature: 0-600 ℃; Does tin stove gallbladder material: lead-free titanium alloy; Does tin stove temperature control precision: plus or minus 10 ℃ (typical values: 5 ℃); Does tin stove temperature control mode: PID control mode; Does immersion tin time: 0.1 Sec ~ 99.9 Sec; Does gallbladder wall size: tin stove W90 L200 * * H40 ㎜; Does appearance size: W340 L570 * * H430 ㎜; Does the net weight: 18 kg.

(2) features: does apply to all sorts of elements such as vertical, horizontal transformer immersion tin; Does the digital PID control can be set temperature, temperature constant temperature, tin surface oxidation; Does tin furnace using titanium alloy material, high temperature resistant, durable (average service life of up to 5 years), non-stick tin tin purity without impurities, especially suitable for lead-free soldering; Does place type fixture, up and down change rapidly; Does hot rods for the removable, easy to change.

HY-H01 无铅自动恒温锡炉

HY-H02 翻转式自动焊锡机

HY-H03翻转前推型自动焊锡机

HY-H10 全自动翻转式焊锡机

HY-H11 半自动拨锡焊锡机(经济型)

HY-H12 自动加松香型沾锡机

HY-H13 气缸式自动点锡机

HY-H15 四站式自动浸锡机

HY-H16 六站式自动浸锡机

HY-H03焊锡机出口俄罗斯

Hui the warm reminder: the transformer automatic soldering machine of choose and buy, be sure the dongguan hui, the quality of science and technology manufacturers, in turn buy automatic soldering machine at the same time, we will be good installation and debugging, testing by the testing authority before shipment, you can also provide the installation video teaching, guarantee the quality, the company has a professional after-sales team, currently accumulated more than 500 domestic customers, quality is reliable, welcome to inquire!
