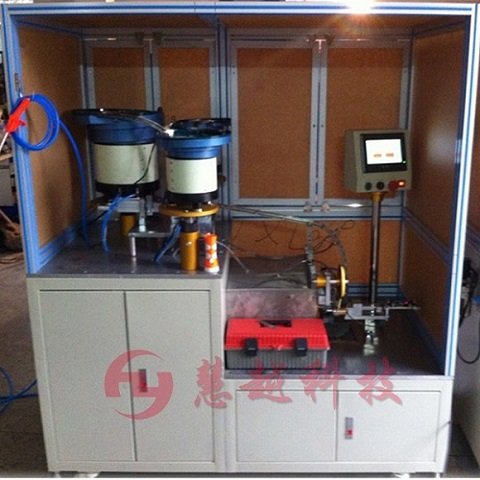

HY-B08 automatic assembly machine core

Brand: Hui Yue Technology Model: HY-B08
Automatic assembly machine uses magnetic core transformer core package tape and peripheral tape Alias: core plastic bag automatic assembly machine
Automatic assembly machine core features:
1, the product package in the HY-B06 automatic glue machine on the basis of increased vibration automatic feeding mechanism, instead of artificial feeding, a person can look after more than one machine, greatly reduce production costs, improve production efficiency;
2, the yield is about 52-58 pcs / min;
3, the use of man-machine interface control, convenient and simple to operate, have changed the tape alerts.
?
An automatic assembly machine core functions and work processes:
1 features: auto-complete transformer core, skeleton assembly and plastic packages.
2 Workflow: material on the core material on the skeleton → → → assembled under the core material encapsulated → cutting →
?
Second, the automatic assembly machine core technical parameters:
Control: Programmable Logic Controller (PLC) and 7.1-inch touch screen and command input parameter settings
Working mode: Auto / Manual / single station cycle
Feed: automatic feed
Production speed: 50-60pcs / min
Power supply voltage: AC220V 50-60HZ
Air pressure: 0.4-0.6Mpa
Machine Dimensions: Height 1.9mm, width 900mm, length 1.5mm


Third, automatic assembly machine core can be customized according to customer products and non-standard automation equipment, fixtures

Fourth, the service protection Hui
???? 1, host free one-year warranty and lifetime maintenance costs.

HY-D08 Integrated Test System

Integrated Test System features:

An automatic Coding

2,6-stop automatic product detection (detection, including: insulation, inductance, impedance, number of laps between layers, etc.)

3, automatic filter out bad products

4, Ichiban automatic regulation columns

5, automatic robot clamping products

6, automatic loose clamp products

7, power:

??? a, the main conveyor motor, 460W

??? b, rotary motors, 2 * 15W = 30W

??? C, servo motor, 400W

?

Product Specifications:

Power supply voltage: ac220 single phase <1000W

Work stations: 12 stations

Test function: test products according to customer order workstation, you can test up to four kinds of functions

Feeding methods: artificial feeding

Cutting way: Belt material flow tells

Hui more automated equipment can be customized non-standard automation equipment, fixtures and products according to customer requirements
Hui Yue service protection
1, host free one-year warranty and lifetime maintenance costs.
2, independent research and development, production and sales.
3,en years of experience in manufacturing automation.
4, ready supply of spare parts.
5, tailor-made, absolutely zero risk.

Core assembly machine adopts man-machine interface control, convenient and simple to operate, have changed the tape alerts. Production of about 52-68 pcs / min;
