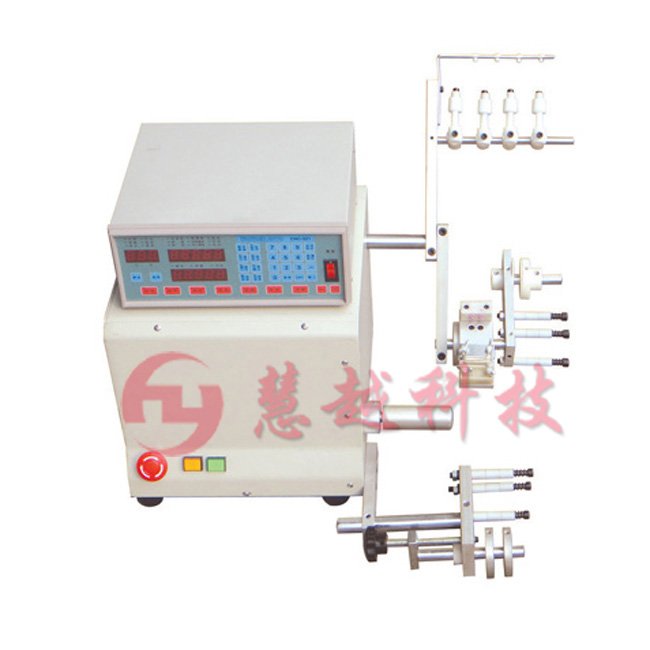

HY-R06 CNC winding machine Details
First, the device name

Single Axis CNC winding machine (BLDC)
Model: HY-R06

Second, the device size
Width 350x height 560x length about 410mm (not including wire frame)
Weighs 30KG

Third, the basic equipment requirements

1. Input: AC220V, 50HZ frequency
2, using the latest synchronization with the lotus-type cable, high precision, ultra-intelligent mode.
3, large memory capacity, you can access the 1000 group steps.
4, the spindle speed reverse 3000-5000RPM (optional)
5, motor: 120W DC brushless
6, the body includes: automatic function

Fourth, the functional description

1, the controller uses the latest synchronization with the lotus-type cable, high precision, ultra-intelligent mode, a self-test features, including setting error, speeding track and speed than the standard, with a speed detection function, can automatically adjust spindle speed down to the most stable state.
2, diameter setting: 0-1.0mm
3, cable distance: 0-100mm
4, roll diameter: 80mm
5, the standard wire diameter: ∮0.03-0.6mm

Fifth, the organization of materials and electrical materials

1, the main part of the material using A3
2, the other qualities of aluminum anodic oxidation.

3, the controller, the spindle motor, motor cable technology using Taiwan, Europe and Germany.
