please select HUIYUE transformer bushing auto through machine manufacturer.

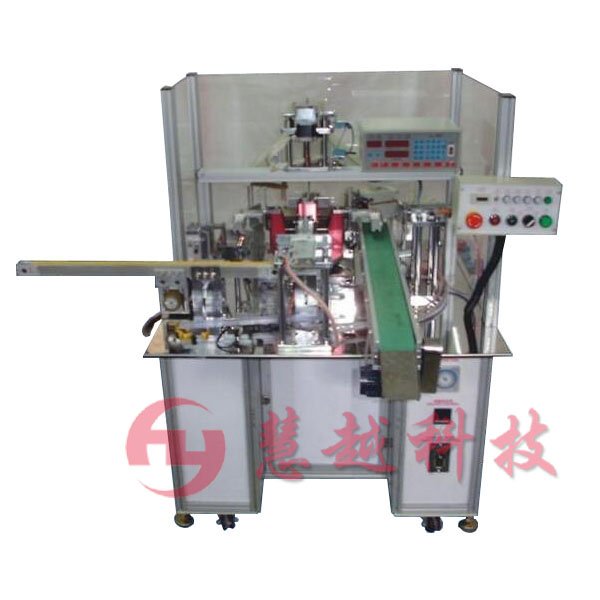

HY - H15 four type automatic dip tin machine applicable products: high frequency and low frequency transformer, inductance coil, relays, filters, inductors, rectifier, inductance coil.

You can solder on any vertical, horizontal transformer.

Can be automatically drawn tin slag, solder height can be adjusted.

Can be set soldering time (tin can increase solder).

Heating pipe for the removable, easy replacement.

Titanium alloy tin furnace, high temperature resistant, high quantity of up to 600 '~ C.

The LCD panel, easy to operate.

Replacement of varieties of simple, rapid and suitable for various assignments.

Adopt computer CNC control system, can take 1000 groups of step sequence with stepper motor memory, can access the different ways of multistage set solder.

PID temperature control, tin stove temperature stability.

DIP function, improve the icicles.

Stepper motor + ball screw, and fast.

Can be set soldering time. Heating pipe for the removable, easy replacement. (adopted son type tin cups, tin bath) of type of mother

Can increase the transverse institutions.

Artificial feeding, automatic rosin

Automatic pressing (plus rosin)

Automatic material return, stepper motor

 Effective soldering area 150 X100 (L) (W) X 60 mm (seller)
Set the minimum scale 0.04 mm
The rate of 1.5 SEC/PCS
Apply the product makes
Power AC 220 v 50/60 hz 1.5 KVA
Pneumatic 4-6 KGF/cm2
The weight of 65 KGS
Mechanical dimension
640 X650 (L) (W) X1300 RRM (H)

HY-H01 无铅自动恒温锡炉

HY-H02 翻转式自动焊锡机

HY-H03翻转前推型自动焊锡机

HY-H10 全自动翻转式焊锡机

HY-H11 半自动拨锡焊锡机(经济型)

HY-H12 自动加松香型沾锡机

HY-H13 气缸式自动点锡机

HY-H15 四站式自动浸锡机

HY-H16 六站式自动浸锡机

HY-H03焊锡机出口俄罗斯

Hui the warm reminder: the transformer automatic soldering machine of choose and buy, be sure the dongguan hui, the quality of science and technology manufacturers, in turn buy automatic soldering machine at the same time, we will be good installation and debugging, testing by the testing authority before shipment, you can also provide the installation video teaching, guarantee the quality, the company has a professional after-sales team, currently accumulated more than 500 domestic customers, quality is reliable, welcome to inquire!
