20 automatic machine casing wear and Shantou Jin Tak Electronic Delivery of production Case Details

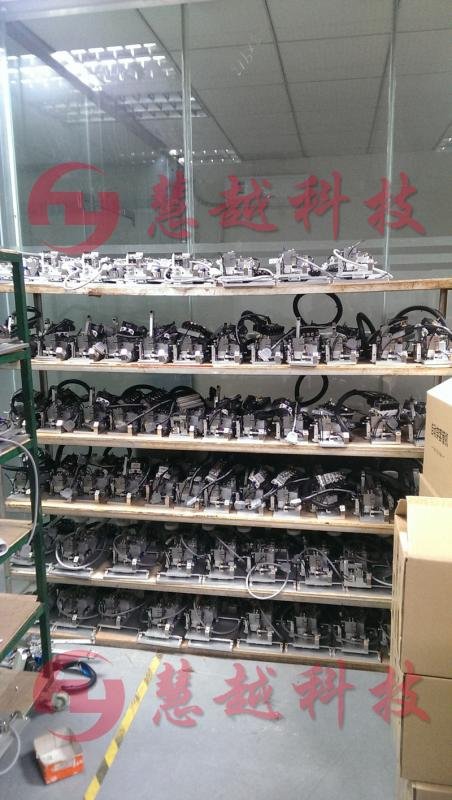

Recently Shantou Jin Lin total German electronics factory site visits to Division I wear sleeves automatic machine, yesterday signed 20 contracts automatic machine wear sleeves, our machines are automatic wear sleeves keep a lot of cash, today 20 automatic wear bushing machine production and delivery of Shantou Jin German electronics, then the following business Hui Li for the introduction Shantou Chaoyang Haimen Jin Tak plastic electronics production mode.

Shantou Chaoyang Haimen Jin Plastic Electronics Factory is electronic transformers, inductors, electronic skeleton, core and other professional production and processing company, has a complete and scientific quality management system. Integrity, strength and quality of Shantou Chaoyang District Haimen Jin Tak plastic electronics factory recognized by the industry.

Shantou Jin De electronic "technological innovation" as a precursor to the formation of the Institute of Electrical Automation, new product development center as the core, Chinese Academy of Sciences, China University of Science and famous research institutes, colleges and universities rely on technological innovation system, the full use of international advanced CAD-aided design system, the first research and development of intelligent switchgear, box-type substation, and other products with the advanced international level, won eight national patents, and was included in the national key new product projects and Torch Program projects. Group of high-tech products output value accounted for more than 60% of GDP, the Group three consecutive years as high-tech enterprises in Shanghai.

Li Hui smaller to tell you about our company, Dongguan Hui Yue Technology HY-20 free transfer machine (stupid machine) Automatic machine wear bushing wear bushing difference between ordinary automatic machine
A: works of distinction
An ordinary single-action structure briquetting machine used in laminated sleeve when briquetting by direct compression cylinder above the clamp to move the fixed surface compression sleeve, using a compact single-action structure, the carrier pipe surface is non-adjustable fixed plane down.
2, double acting a fool briquetting machine structure, laminated sleeve when two compact coherent structure by pressing two cylinder horizontally through the upper and lower clamps, using a double-action compact structure, the carrier pipe surface is V type moves up and down surface (compacts under briquetting)
Two: the nozzle, the nozzle positioned difference
An ordinary machine nozzle, the nozzle can be mobilized up and down the structure. Nozzle nozzle could not do before and after positioning, installation of lines depends on the experience and the nozzle tip to determine when the nozzle at a distance from the nozzle tip pressure pipe cutter. The reason: the use of a compact single-action structure, fixed flat loading surface is not adjustable, replace the line types and kinds of pipe when the pipe diameter and diameter as the diameter of the center to increase its relative body surface to form horizontal load tolerance are increasing, so we need to adjust the nozzle and nozzle surface with a relatively high degree of loading, the machine can be successfully worn pipe and threading. (Not adjust up and down, even if it is close to the line of Guan species and can not be used)
2, fool machine nozzle, nozzle fixed structure, and online at the mouth of the nozzle to do the installation location of the way to ensure that the installation is complete nozzle and nozzle to a fixed distance pipe cutters distance (nozzle 0.5mm line mouth 0.3mm) (Tube reasons: the use of a double-action compact structure, to ensure that the replacement value of the relative height of the aircraft after a fixed nozzle and nozzle with a V-shaped loading surface is unchanged.
Three: the difference between the scope of the mold
An ordinary machine uses a single V-groove or U groove structure fixed casing, with two sets of die on general machine (large and small one each). Do different diameters need to replace a different die, estimated using the example as follows: Small briquetting: 30L-24L large briquetting: 23L-20L and 20L do 28L tube pipe replacement aircraft when you need to replace the die. Because there are tolerances between the size of the two dies, so the need to adjust the left and right after replacement of the nozzle and the nozzle is to solve the problem of excessive tolerance.
2, the stupid machine with double V groove while increasing their fixed casing, its scope is: a small machine 30L-18L 19L-14L big machine pipe diameter. No adjustment tolerances around to solve the problem.
Four: Process difference
1, ordinary casing machine with manual lathes and CNC machining centers to parts decomposition process, and then come through a combination of its components, after its assembly tolerances about 1.mm different machines over, before they can be assembled entirely by adjusting it to, so in Because the process of using the machine to adjust frequently, in case the device is not very proficient people, machines can not be used in a subsequent regulation.

2, fool casing machine used in all CNC machining centers molding process to ensure the product after assembly tolerances of less than 0.05mm after school projectors and standard calibration precision can reach 0.02mm machine completely do not adjust the machine.
